PKS019-50 series

Features

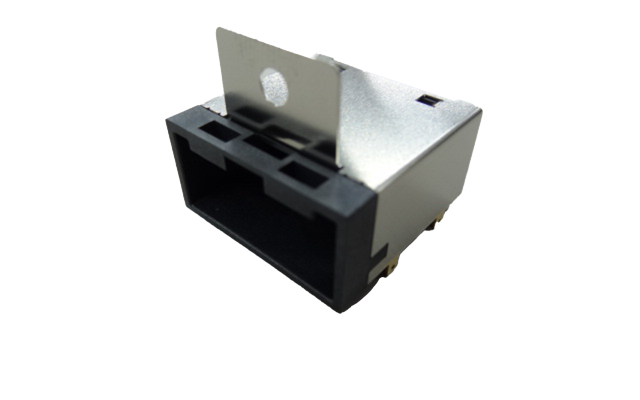

Receptacle connector supporting HDMI types D and E
• Realization of size reduction.
(24.0 mm (W) × 24.35 mm (D) × 12.5 mm (H))
• Soldering specifications enable high-strength design, including coiling strength.
• Adopting a solderable mounting substrate for the shell bottom part, thus improving the scoop strength of cable-side connectors.
• SMT and DIP types are available for the shell soldering part.
• A lineup of products with or without flanges secured to the housings.
• HDMI Ver. 1.4b compliant
• Supporting automatic mounting.

Specifications (general performance)

Operating temperature range
-40°C to 85°C

Number of insertion and removal times
10

Specifications (electrical performance)

Rated current: 0.5 A
Rated voltage: 40 VAC
Withstand voltage
500 VAC (1 minute)/mated: 300 VAC (1 minute)
Insulation resistance
Unmated: 500 VDC, 1,000 Ω or higher/Mated: 150 VDC, 10 MΩ or higher.
Contact resistance: 30 mΩ max.

Download

PKS019-50 series You can download the product diagram and catalog data.

• image

  product name

  document

  explanation

•

  PKS019-50 series

  ・Catalog

  Download

•

  PKS019-5000-0

•
