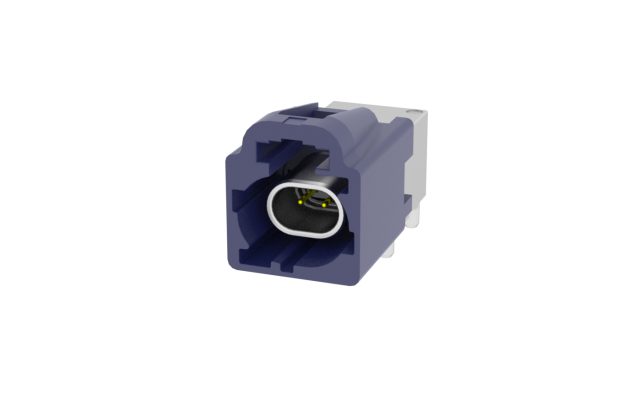

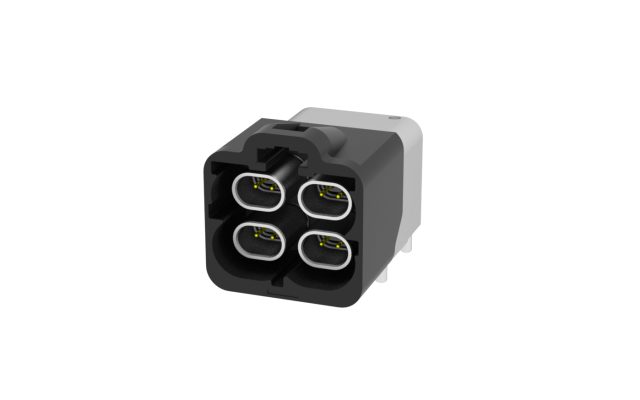

Y-HDE”HF116 series”

Features

Connector for automotive Ethernet
• Supporting a wide range of automotive applications.

• Data transmission up to 20Gbps

• Weight and space saving design

• Compliant to LV 214 / USCAR

• Codings for various connection are available

Specifications (general performance)

• Mating Cycles : 25 times

• Operating temperature range : -40°C ～105°C

• Packaging : Tape and reel / Tray

• Type of plating
　Mating area: Ni-Au
　Solder area: Ni-Sn

Specifications (electrical performance)

• Rated voltage: 100 VAC rms

• Rated current: 1.5 A

• Contact resistance: 10 mΩ

• Insulation resistance: 100 MΩ

• Withstand voltage: 250 VAC rms
